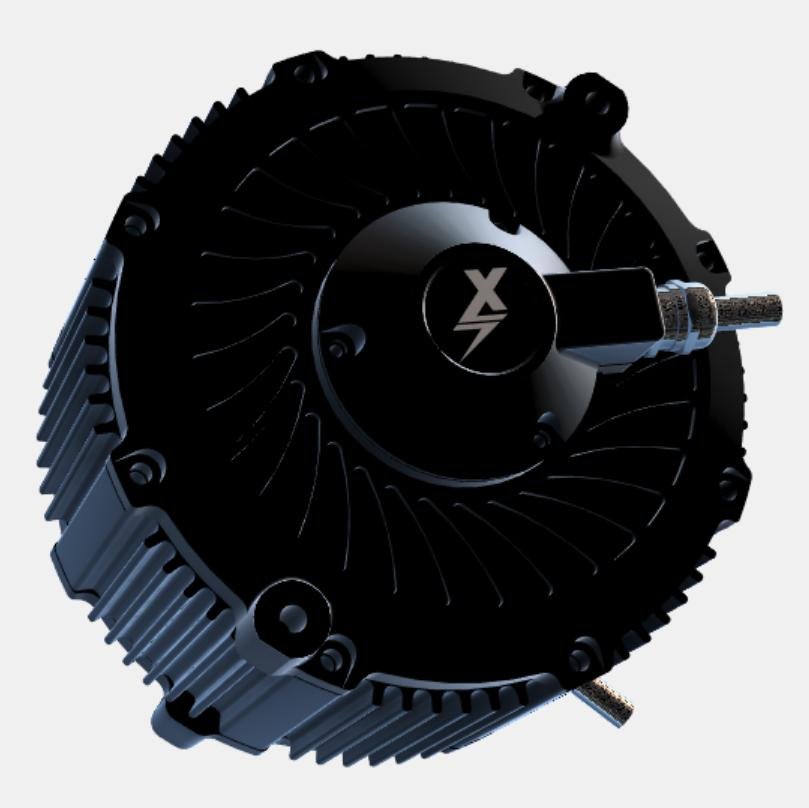

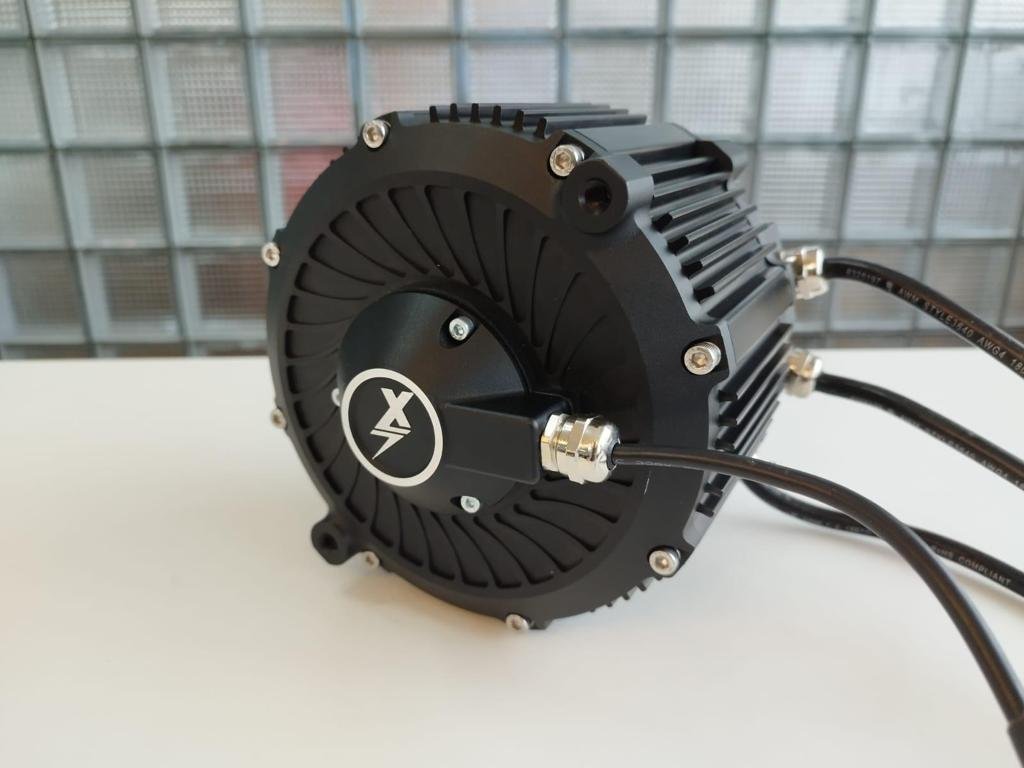

EBMX XUB-80 Motor For SurRon Ultra Bee

EBMX XUB-80 Motor For SurRon Ultra Bee - Image 2

EBMX XUB-80 Motor For SurRon Ultra Bee

Original price was: $1,550.00.Current price is: $1,394.99.

XUB-80 Motor (Ultra Bee)
PEAK POWER	40000W
VOLTAGE RANGE	48v – 104v
MAX TORQUE	65Nm
MAX STABLE ROTOR RPM	12000RPM
MAX EFFICIENCY	94%
MOTOR CONFIGURATION	10 poles and 12 slots
WINDING TYPE	Dual Y parallel connection
STATOR AND ROTOR STACK THICKNESS	80MM
SENSING METHOD	NJDC 605 Encoder
KV Value	85~90KV
Rated power	Air cooled:
	15.5KW(28 minutes) 28KW (continuous run 2 min 20 seconds)
	Water cooled:
	18KW(28 minutes)
Max Phase current	1100A
Rated Phase current (Continuous run)	500A (35Nm)
Motor temperature	180 deg C windings
	140 deg C start limiting
	160 deg C power cut
Waterproofing	IP67
Anti-corrosion	Yes
Colors	Black with Black End Cap




Weight/Size	Air cooled:
	OD181.5mm*L138mm 14KG
	Water cooled:
	(TBD)
Warranty	2 Year

Add to wishlist

Categories: Electric Dirt Bike Accessories, Electric Dirt Bike Motors

Description
Reviews (0)

Description

Slightly bigger with an 80mm Stator thickness and more powerful than its little brother the XLB-60.

40KW rated & designed from the ground up to handle the heat, 180C rated windings with U42H magnets.

Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 12000RPM.

Encoder based motor control for increased low end torque response and smooth predicable power delivery.
