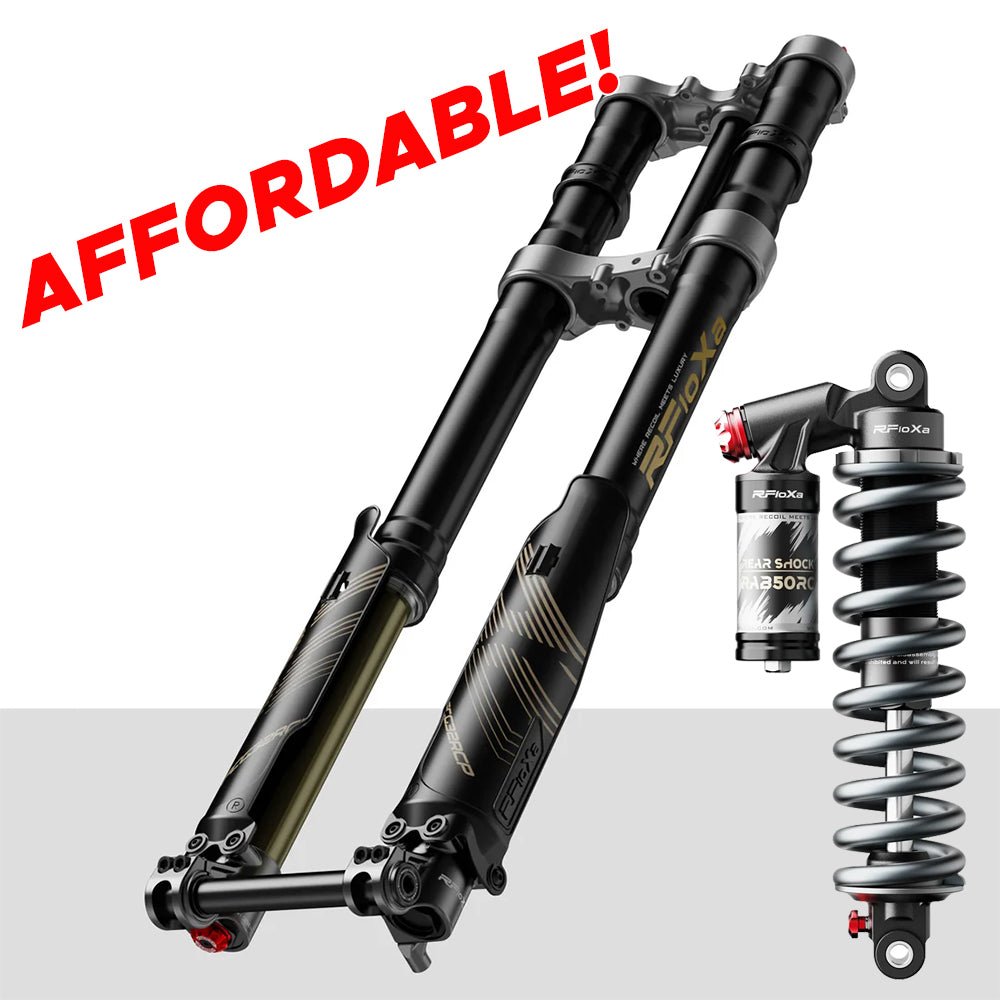

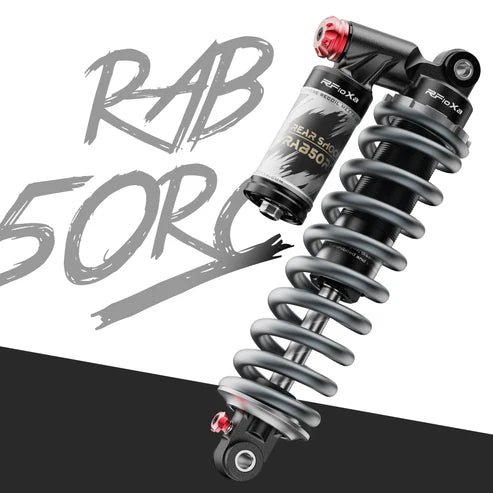

AFFORDABLE Front & Rear Upgrade | RFLOXA Hawk32 + RAB50RC Suspension Kit | by RFLOXA | for Surron, Talaria, E-Ride Pro & More
$784.00
Tech Specs
- Center Distance: 750–800mm
- Main Piston Travel: 203mm
- Tube Diameter: 37mm
- Brake Mount Spacing: 74mm
- Rotor Compatibility: 203mm standard, 220mm with adapter
- Adjustments: HSC/LSC compression, rebound, spring preload
- Damping System: Inverted oil-spring, independent leg function
- Warranty: 1-Year Manufacturer Warranty
Fitment Compatibility
- Surron LBX / LBS / L1E
- Talaria MX3 / MX4 / XXX
- Segway X160 / X260
- E-Ride Pro S / SS 1.0 / SS 2.0
- RAWRR Mantis
- 79 Bike Falcon M
- Ventus One
- RFN Apollo
- Rerode R1
Important Fitment Notes
- Frame Clearance: Some models like the Talaria MX4 or Sting R may require light grinding on the outer fork tube for proper frame clearance — similar to Fox 40 setups on Surron.
- Brake Compatibility: Not plug-and-play with larger calipers like those on Altis Sigma, SRPNT Moto, or E-Ride Pro SS 3.0 / SR. May require a specific adapter (in development).
- Using Volar Sport Racing calipers? Reach out — fitment depends on rotor, wheel, and frame combo.
Description

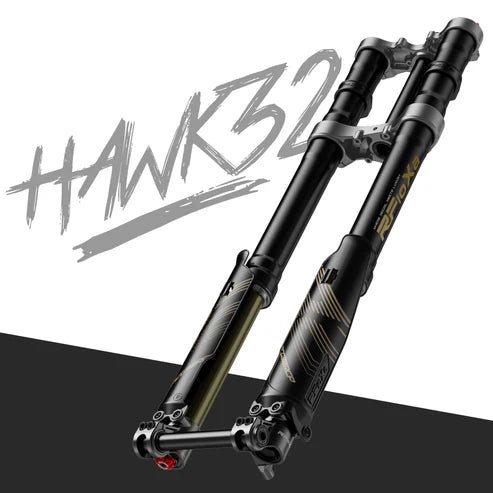

The RFLOXA Hawk32 Front Fork is a serious upgrade for electric dirt bikes and downhill machines. With 203mm of responsive travel and a refined inverted oil-spring damping system, this fork delivers dialed-in performance across rugged terrain, jumps, and high-speed descents. Whether you’re chasing better control or smoother landings, the Hawk32 brings pro-level suspension tech at an accessible price point.
Need more travel and a CNC triple clamp? Check out the Hawk32 PRO — it bumps travel to 228mm and adds upgraded features across the board.
Key Features
- 203mm of plush suspension travel (non-upgradeable — see PRO for 228mm)
- 37mm stanchion diameter for added strength
- 74mm caliper mount spacing — fits 203mm rotors (220mm with adapter)
- Inverted oil-spring design with independent leg function
- Multi-stage adjustability:
- High-speed & low-speed compression
- Rebound damping
- Manual spring preload knobs
- Oil pressure bottom-out system for end-of-travel support
- Dual valve plates for consistent compression control
- Cold-resistant, low-friction suspension oil
- Forged AL6061-T6 brackets + AL7075-T6 alloy tubes
- 55CRSI spring wire for long-term durability
Spring Weight Options
- 45 lb spring — For riders ≤ 100kg (≤ 220 lbs)
- 60 lb spring — For riders 100–130kg (220–285 lbs)
- Progressive 45–60 lb spring — For riders 80–130kg (175–285 lbs)
